Garment Shops Many Hot Selling Precision Right Angle Planetary Gearbox Hot Selling Stepper Motor

1 Piece
MOQ
$250.00(1 - 29 Pieces) $200.00(30 - 49 Pieces) $170.00(50 - 99 Pieces) $120.00(>=100 Pieces)
prezzo
Garment Shops Many Hot Selling Precision Right Angle Planetary Gearbox Hot Selling Stepper Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1 Year
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
Weight (KG): 8 KG
Customized support: OEM, ODM
Gearing Arrangement: Planetary
Output Torque: 10~2200Nm
Input Speed: 3000~6000rpm
Output Speed: 3~2000rpm
Efficiency: 95%
Ratio: 3 ~ 100
Color: Black or Blue
Output Type: shaft or hollow
Packing: Carton or wooden case
Heat treatment: Yes
Lubricant: Synthetic
Customization: Support
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Carton or Wooden case
Supply Ability: 50000 Set/Sets per Month
Descrizione di prodotto
Recommend Products
Product Description

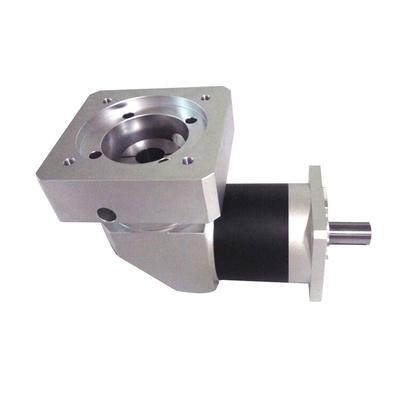

MFR Right Angle Planetary Gearbox


Description of MFR High Precision Planetary Gearboxes
MFR series right angle gearbox is designed to solve the problems of space. The compact structure of MFR speed reducer provides the customer with a good solution when installation space or clearance is limited. High precision and solid construction make MFR speed reducer more valuable than other similar gearboxes. Two ends of needle roller bearings with high precision on the shaft back up the planetary gears to improve the torsional stiffness of the speed reducer. Meanwhile, this planetary gearbox is also an economy precision gear reducer, providing an excellent choice for customers who has a limited budget. In addition, a flanged output design makes it easier to connect with the equipment.
Overview of MFR Technical Parameters 1)Gearbox outline dimension: 60,80, 120, 160 2)Reduction ratio: 3, 4, 5, 6, 7, 8, 9, 10, 14, 20 ( Single Stage ) 15, 20, 25, 30, 35, 40, 50, 70, 80, 100, 120, 140, 160, 180, 200 ( Two Stage ) 3) Lubrication: Lifetime lubrication with the use of fully synthetic grease 4) Rated Input speed: 3000— 8000rpm 5) Service Life: >20, 000 hours 6) Backlash: for P1 precision 1-Stage:≤ 8arc min, 2-Stage: ≤ 10 arcmin for P2 precision 1-Stage:≤ 11 arc min, 2-Stage: ≤ 13 arcmin 7)Operating temperature: -15°C to +90°C 8)Protection Class: IP65 9)Noise Value: ≤65~75 DBA

Product Paramenters
● Low tooth backlash of the angle planetary gearbox.
● Angle planetary reducer is easy to install, and the elastic design of the connecting plate of the reducer and the size of the input shaft hole enables our gearbox to be combined with all brand of servo motors.
● High-quality synthetic lubricants are used. Due to good fluidity and extreme pressure and pressure resistance, all parts in the gearbox are fully lubricated and protected.
●High quality and non-deteriorating oil seal make sealing better. Roller cone bearings are used for maximum axial radial load.
Production Drawing of Planetary Gearbox MFR120-3-S2-P2

Company Profile
TRANS is a professional manufacturer in the field of motion control products, which integrates R & D, manufacturing and sales as a whole. TRANS cooperated with the German reducer technical team to establish a precision gearbox division to cooperate in the development of high-level high-precision gear reducers, including planetary reducers and harmonic reducers (American genius inventor C W.Musser created and invented the principle of wave gear device), 90-degree right-angle servo gearbox (suitable for different installation and output requirements of automation), cycloidal pinwheel RV reducer (suitable for multi-joint robot industry)
Our Factory
Our Advantages
Fast Delivery Normally, we have goods in stock for standard input sizes of gearboxes. We can deliver the gearbox for you within 7 days after we get your payment. High-quality Guarantee Our precision gearboxes meet high standards and the quality can meet the requirement of European customers. We have won the regular repeated orders from them. Widest Range We provide the widest range of model sizes for your choice. Most of our series gearboxes can be alternatives to other brands of gearboxes. International brands like Apex, Shimpo, Neaugart, Alpha, Liming, Sesame, harmonic drive, Hiwin, Nabtesco, etc. Timely Techinical Support We always take the interest of our customers in the first place. Our sales team always can respond to the inquiries of our customers within 24 hours even during the holiday. Our timely all-round service has won the deep trust of our customers.
Packing & Delivery
FAQ
Q1：Are you manufacture and do you have quality assurance of the speed reducer?
A1：Yes, we are factory based sales company in China with more than 20 years’ experience.The MKD product positioning is a high-end quality of speed reducers. All of our gear reducers are tested before delivery and one year’s quality guaranteed with lifetime maintenance service as well as technical support.
Q2：How long is your delivery time?
A2：Normally, we have sufficient stock for standard backlash gear reducers especially for planetary gearboxes. If there’s no goods in stock for your required reducer, usually, it will take 15-20 days to produce. For some customized gearboxes, it will be a little longer lead time. Besides, we are customer oriented company. If you need the speed reducer urgently, we can arrange your orders production in front of others to save time and cost.
Q3：What is the payment method of your planetary reducer?
A3：T/T. 30% of total amount to be paid as deposit, and the balance 70% to be paid before shipment. You can pay to our boss’s individual account or company’s account. And you also can pay through Alipay or paypal. If the amount of gear reducer is small, we suggest you pay 100% of total amount before placing the order so that time can be saved for delivery.
Q4：Do you have a discount for speed reducer?
A4：Yes, since we are manufacture and can give you a discount according to the quantity you will buy. Different quantity with different discount price. In a word, the more you buy from us, the bigger the discount will be. Welcome to consult us for details.
