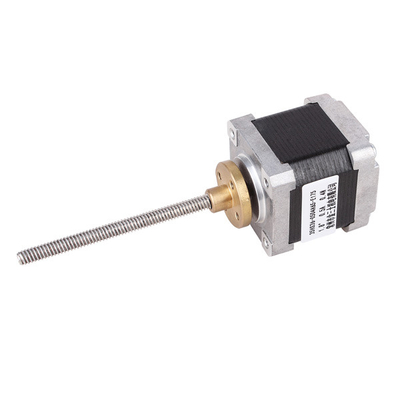

Name: nema 14 worm gear stepper motor 35HM28-0804A worm gear linear stepper motor
Brand: nema 14 worm gear stepper motor 35HM28-0804A worm gear linear stepper motor
SKU: 35HM28-0804A lead screw stepper motor
Price: 1 USD
Availability: InStock
Rating: 5 (168 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: 35HM28-0804A lead screw stepper motor

Phase: 2

Type: Hybrid

Current / Phase: 0.8A

Certificazione: ce, ISO

diameter: 35mm

lead wire No.: 4

length: 28mm

voltage: 3.6V

Informazioni di base

Certificazione: ce, ISO

Model Number: 35HM28-0804A lead screw stepper motor

Termini di pagamento e spedizione

Packaging Details: lead screw stepper motor packading: carton

Supply Ability: 8000 Piece/Pieces per Month lead screw stepper motor

Descrizione di prodotto

35HS nema 14 series stepper moter :

Model No	Step Angle(°)	Rated Voltage(V)	Rated Current (A)	Phase Resistance(Ω)	Phase Inductance (mH)	Holding Torque (g.cm)	Rotor Inertia (g.cm²)	Motor Length (mm)	Leads No.	Motor Weight(g)
35HS30-0804	1.8	5.44	0.8	6.8	8	1200	17	30	4	150
35HS30-1504	1.8	2.25	1.5	1.5	1.8	1200	17	30	4	150
35HS34-0504	1.8	6.6	0.5	13.2	14	1500	20	34	4	170
35HS34-1204	1.8	3	1.2	2.5	3.5	1500	20	34	4	170
35HS38-1684	1.8	2.77	1.68	1.65	2.8	2000	24	38	4	200
35HS38-2004	1.8	5.6	2	2.8	3.8	2500	24	38	4	200
35HS45-0804	1.8	6	0.8	7.5	12	3000	28	45	4	250
35HS45-2004	1.8	5	2	2.5	2.6	4500	28	45	4	250

Wiring Diagram And Dimensions:

nema 14 worm gear stepper motor 35HM28-0804A worm gear linear stepper motor
