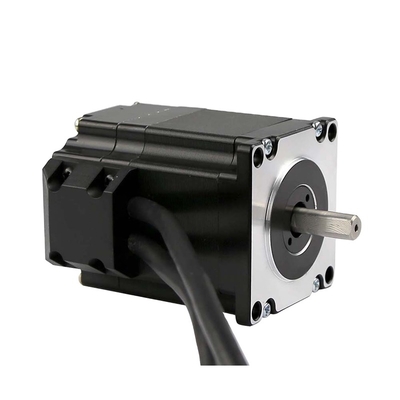

High Torque 1.8 Degree Stepper Motor NEMA 23 Two Phase Hybrid Closed Loop Stepping Motor With Encoder 57HS56-3004A-E1000

1 Piece
MOQ
$23.50(1 - 49 Pieces) $19.20(50 - 199 Pieces) $16.80(>=200 Pieces)
prezzo
High Torque 1.8 Degree Stepper Motor NEMA 23 Two Phase Hybrid Closed Loop Stepping Motor With Encoder 57HS56-3004A-E1000
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: 57HS56-3004A-E1000
Phase: 2
Type: Hybrid
Current / Phase: 3.0A
Name: 57HS56-3004A-E1000
Motor length: 56mm
Torque: 1.0nm
Weight: 680g
Diameter: 57mm
Brand: zz-motor
warranty: one year
Dielectric strength: 500VAC 1 minite
phase: 2
Certificazione: ce, ISO, RoHS
Informazioni di base
Certificazione: ce, ISO, RoHS
Model Number: 57HS56-3004A-E1000
Termini di pagamento e spedizione
Packaging Details: 1. Carton box with foam 2.Box can be customized as you require
Supply Ability: 200 Box/Boxes per Week
Descrizione di prodotto
Product Description
Product Name
closed loop  stepper motor 57HS56-3004A-E1000
Material
metal
Function
machinery industry, medical instruments, laboratory equipments, home application
Package
foam and box

  • Electirc performance

  • step accuracy   ±5%

  • temperature      85℃Max

  • Ambient Temperature -20℃~+50℃

  • Insulation Resistance   100ΩMin 500VC DC

  • Dielectric Strength  500VAC 1 minute

  • Inbuilt incremental encoder  1000 line


Electric Specifications
电机型号
model
机身长
length
mm
相电流
A/phase
相电阻
Ω/phase
相电感
m H/phase
静转矩
holding
torque
转动惯量
Rotor inertia
g c㎡
电机重量
motor weight
g
57HS56-3004A-E1000

56

3.0

1.1

3

1.0

280

680
57HS76-3004A-E1000

76

3.0

0.5

2.4

1.6

440

1050
57HS84-4004A-E1000

84

4.0

0.7

2.7

2.0

530

1130
57HS100-42041-E1000
100
4.2
0.9
3.8
2.4
680
1250
57HS112-4204A-E1000

112

4.2

0.9

3.8

2.5

800

1400
Dimensions unit =mm
Product Usage



  • Description of product use effect

The product mainly used in : laboratory equipments, medical instruments, advertising equipments, subway equipments, surveillance products, textile industry and other automation equipments.
Packing&Shipping
Packing
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days

Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linear motor and drivers.
The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments,subwayequipments.,surveillancproducts,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers
