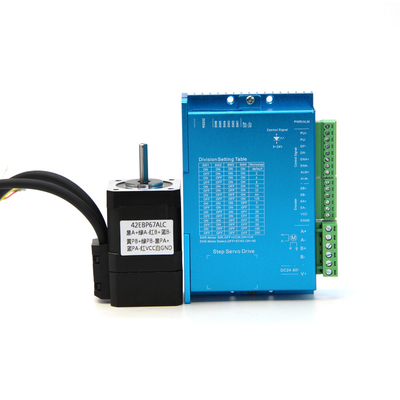

Name: 3D Printing 2 Phase NEMA 17 Encoder Closed Loop Stepper Motor With Encoder For 3D Printers
Brand: 3D Printing 2 Phase NEMA 17 Encoder Closed Loop Stepper Motor With Encoder For 3D Printers
SKU: 42EBP67ALC-TFA+HBS57AJ
Price: 42.00 USD
Availability: InStock
Rating: 4.8 (166 reviews)

3D Printing 2 Phase NEMA 17 Encoder Closed Loop Stepper Motor With Encoder For 3D Printers

1 Set

MOQ

$42.00(1 - 9 Sets) $38.00(>=10 Sets)

prezzo

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: 42EBP67ALC-TFA+HBS57AJ

Phase: 2

Type: Hybrid

Current / Phase: 1.5A

Certificazione: CCC, ce, ISO

Commutation: closed loop

Key word: nema17 closed loop stepper motor

Application: 3D Printing

Motor length: 67mm

Weight: 0.45kg

Rated voltage: 24v

Brand: Times Brilliant

Torque: 0.52NM

Informazioni di base

Certificazione: CCC, ce, ISO

Model Number: 42EBP67ALC-TFA+HBS57AJ

Termini di pagamento e spedizione

Packaging Details: polyfoam,cardboard carton

Descrizione di prodotto

Product Description

2phase Nema17 closed loop stepper motor 0.3Nm motor for 3D printer

Parameter details for motor:

phase	2
Step Angle	1.8°
current	1.5A
resistance	1.5±10%
inductance	1.5±20%
The static torque	0.52Nm
Insulation class	B
Insulation resistance	100M Ωmin,500VDC

Model	Step Angle °	Torque NM	Current A	Voltage V	Resistance Ω	Inductance mH	Motor Length mm	Increment Encoder	Shaft length mm	Shaft DIA mm	Weight kg
42EBP53ALC	1.8	0.3	2.5	24	1	0.6	53	1000PPR	24	5	0.5
42EBP59ALC	1.8	0.4	2.5	24	1.2	1.4	59	1000PPR	24	5	0.65
42EBP67ALC	1.8	0.52	2.5	24	1.6	2.4	67	1000PPR	24	5	0.8
42EBP79ALC	1.8	0.65	2.5	24	2	3.5	79	1000PPR	24	5	1

Size

Driver HBS57: new 32-bit DSP digital nema23 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, extremely low noise, high - speed torque than ordinary driver 40%. Voltage: dc16-70v (DC24V with 57 motors is recommended) subdivided: 256 subdivided
