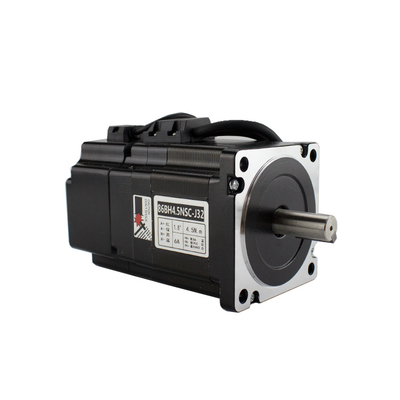

High Precision 1.8 Degree 4.5NM Stepping Motor CNC NEMA 34 Stepping Motor Hybrid With Brake 86BYG80EC1000Z

1.0 set
MOQ
$72.00(>=1 sets)
prezzo
High Precision 1.8 Degree 4.5NM Stepping Motor CNC NEMA 34 Stepping Motor Hybrid With Brake 86BYG80EC1000Z
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3 months
Model Number: 86BYG80EC1000Z
Phase: 2
Type: Hybrid
Current / Phase: 3A
4.5NM With brake Weight:: 3.18kg
Informazioni di base
Model Number: 86BYG80EC1000Z
Termini di pagamento e spedizione
Packaging Details: Cardboard box
Supply Ability: 100000 Set/Sets per Week
Descrizione di prodotto
Digital display closed-loop driver parameter model






Model
Phase number
Input voltage
Segmentation
Current
Signal voltage
Adaptive motor
HQS57H
Two
24-48VDC
200-60000
1.0A-6.0A
5V-24V
NEMA 23
HQS86H
Two
18-80(AC),24-110(DC)
200-60000
1.0A-8.2A
5V-24V
NEMA 34
Stepper motor model parameters









Model
Step angle (°)
Holding torque（N.m）
Phase current（A）
Phase inductance（mH）
Phase resistance（Ω）
Rotor inertia（g.㎡）
Weight（Kg）
Motor length（mm）
Shaft diameter（mm）
57BYG56EC1000
1.8
1.2
3.0
5.2
1.5
260
1.0
77
8
57BYG76EC1000
1.8
1.8
4.0
3.5
1.0
460
1.4
97
8
57BYG112EC1000
1.8
3.2
5.0
4.2
1.3
550
1.8
133
8
Stepper motor model parameters









Model
Step angle (°)
Holding torque（N.m）
Phase current（A）
Phase inductance（mH）
Phase resistance（Ω）
Rotor inertia（g.㎡）
Weight（Kg）
Motor length（mm）
Shaft diameter（mm）
86BYG80EC1000
1.8
4.5
4.0
4.4
1.0
1500
2.8
101
14
86BYG118EC1000
1.8
8.5
5.0
5.5
0.97
4100
3.8
139
14
86BYG156EC1000
1.8
12
6.0
6.0
1.2
6200
5.2
175
14

Shovel tooth cooling technology
Powerful turbo
cooling fan

The drive base adopts mature shovel (aluminum extrusion)
heat dissipation technology, coupled with precise
current control technology to greatly reduce the motor's heat,
and take measures to prevent overheating from the source.

Stable structure
without jamming

Plenty of torque
The surface of the motor rotor is coated with imported
epoxy resin, which seals the rotor as a whole,
and is cured at high temperature. After the outer circle of the
rotor is abraded, it is not easy to process residues such as
iron pins in the tooth groove, and the motor is stable
after long-term use without the risk of jamming .

Strong motor
overload resistance

The high-torque motor is built with exquisite craftsmanship
and has good responsiveness. It can be directly connected to
the load and run at low speed in the state of close to blockage,
and can eliminate the system error caused by the reduction gear.
