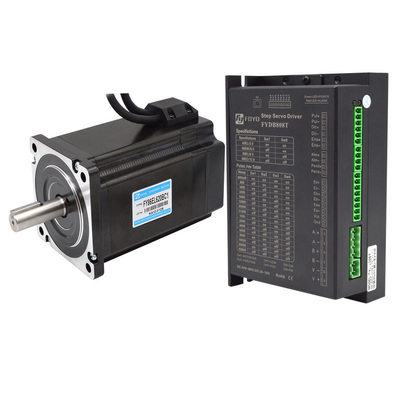

Name: NEMA 34 Closed Loop Stepper Motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V Stepper Servo Driver FYDB808T For CNC Router 150x97.5x53mm
Brand: NEMA 34 Closed Loop Stepper Motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V Stepper Servo Driver FYDB808T For CNC Router 150x97.5x53mm
SKU: FY86EL620BC1
Rating: 4.7 (142 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Warranty: 1 year

Model Number: FY86EL620BC1

Phase: 2

Type: Hybrid

Current / Phase: 6.2A

Product name: Nema 34 Closed Loop Stepper Motor

Holding torque: 8.2N.m

Motor length: 134mm

Phase resistance: 0.45Î©

Phase inductance: 4.7mH

Rotor inertia: 3600g*cm2

Matched driver: FYDB808T

Input voltage: DV24~80v/AC20~70v

Driver current: 2.0~8.0A/Phase auto-adjust

Size: 150x97.5x53mm

Certificazione: ce, RoHS, FCC

Informazioni di base

Certificazione: ce, RoHS, FCC

Model Number: FY86EL620BC1

Termini di pagamento e spedizione

Packaging Details: Using export carton.

Descrizione di prodotto

Nema 34 closed loop stepper motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V stepper servo driver FYDB808T for cnc router

Product Description

1pcs NEAM34 Stepper Motor: FY86EL620BC1 (8.2N.m, 6.2A, 134mm length)

1pcs FYDB808T Stepp Servo Driver (Votalge: DC24~80V/AC20~70V, Drive Current:2.0~8.0A)

Motor Spec

Model No.	FY86EL620BC1
Step Angle	1.8deg
Step Angle Accuracy	±5%(Full step,no load)
Resistance Accuracy	±10%(20°C)
Inductance Accuracy	±20%(1KHZ)
Temperature Rise	80°C Max(Rated current,2 phase on )
Ambient Temperature	-20°C~+50°C
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500VAC for one minute
Length	134mm
Holding Torque	8.2N.m
Current / Phase	6.2A
Resistance / Phase	0.45ohms
Inductance / Phase	4.7mH
Rotor Inertia	3600g.cm2
Weight	5.0Kg

Driver Spec

Series Model	Voltage(V)	Rated Current(A)	Subdivision	Highest Pulse Frequency	Dimension(mm)
FYDB808T	DC24~80V/ AC20~70V	2.0~8.0A phase auto-adjust	51200 steps/rev 16 gear adjustable	250Kpps	150x97.5x53
