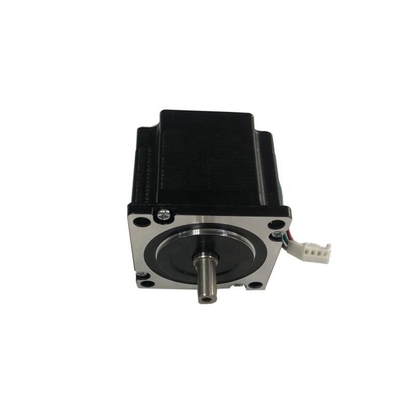

Name: Good Quality NEMA 23 Fan 57mm 1.8 Degree Height Precision 2 Phase 1Nm Hybrid Stepper Motor
Brand: Good Quality NEMA 23 Fan 57mm 1.8 Degree Height Precision 2 Phase 1Nm Hybrid Stepper Motor
SKU: EL57STH51
Price: 14.53 USD
Availability: InStock
Rating: 4.9 (188 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Warranty: 3months-1year

Model Number: EL57STH51

Phase: 2

Type: Hybrid

Current / Phase: 0.62A

Motor type: Hybrid stepper motor

Number of phase: 2

Motor step angle: 1.8 degree

Motor diameter: 57mm

motor frame: Nema 23

Motor length: 51mm

Application: fan

Bearing type: NSK

Connector: Molex

Customization: Both performance and dimension can be customized

Certificazione: ce, ISO, RoHS

Informazioni di base

Certificazione: ce, ISO, RoHS

Model Number: EL57STH51

Termini di pagamento e spedizione

Supply Ability: 500000 Piece/Pieces per Year

Descrizione di prodotto

Product Description

57mm Hybrid stepper motor

Model: EL57STH51

Frame size：57mm

Elmeq Asia stepper motors have a good quality with high step angle accuracy and cover a wide range of applications with a diameter
of 20 - 110 mm, a length of 10 - 210 mm, a holding torque of 0.018 Nm to 30 Nm.

Product Paramenters

	Unit	Value
Step angle		1.8°
Position accuracy		1.8°±0.09°
Number of phase		2
Temp rise(Max)	℃	80
Dielectric strength	VDC	500
Insulation resistance	Mohm(500VDC)	100
Radial play	mm(Load 450g)	Max 0.025
Axial play	mm(Load 920g)	Max 0.075
Insulation class		B
Current/phase	A	0.62
DC resistance	Ω	13.2±10%
Inductance/phase	mH	43±20%
Holding torque	Nm	1.0
Inertia	g.cm²	240
Weight	kg	0.64

Outside Drawing

Details Images

Company Profile

The ELMEQ Group includes companies in Denmark, Germany and China. The headquarter ELMEQ A/S is located in Denmark, offering innovation, development and logistics all based on 20 years knowhow and experience. ELMEQ GmbH was founded in Germany 2011 and is working closely with their headquarters in Denmark and is able to offer innovation, development and logistics services.The ELMEQ Group works with a large range of high quality manufacturing plants of mechanical products. Through the ELMEQ Group you get access to development departments with more than 20 engineers and a production capacity higher than 40 million items per year. Part of the production is approved for automotive manufacture and TS16949 approved.

Changzhou ELMEQ Motion Mechanical Co.,Ltd.(ELMEQ Asia) was founded in 2008 located in China and is able to offer, innovation, development, logistics services and production of customized electro mechanical items. The product range includes motors, gearmotor actuators, assemblies and customized motor solutions.

Our Services

- Quality assurance
- Proactive behavior and innovative thinking
- Technical consultancy and support in pre- & after sales
- Competitive prices and on-time deliveries
- Professional, cooperative partners in Europe and Asia
We look forward to creating new ideas and innovative products with your company.

FAQ

1.How to choose a suitable electric motor?
If the usage with defined voltage,speed and torque ,size of the motor are clear, just find out the close performance one. if not
sure, ask for our help.

2.How can I get the sample motor to check quality and do performance test?
When the requirements are clear to us,we can provide sample.

3.What is your term of delivery?
We accept EXW, FOB or CIF,DAP to door. or anything is the most convenient or cost effective for you. we have many logistics
partners and couriers with who cooperated and experienced many years.

4.What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order,and our production schedule and process status.

5.Can you provide detailed technical data and drawing?
Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to
you for your evaluation and confirm.

6.Can I visit your factory before we place an order?
Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

7.How to control the products quality in your company?
With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of
our products is well controlled and consistent.
