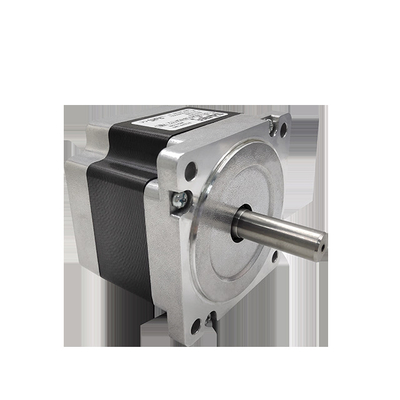

Samsr Automation NEMA 34 High Precision NEMA 34 Stepper Motor SS3401AP45A Hybrid Stepper Kit Open Loop High Torque CNC 3axis Stepper Motor SS3401AP45A

1 Piece
MOQ
$50.50(1 - 99 Pieces) $45.50(100 - 299 Pieces) $40.50(300 - 499 Pieces) $35.50(>=500 Pieces)
prezzo
Samsr Automation NEMA 34 High Precision NEMA 34 Stepper Motor SS3401AP45A Hybrid Stepper Kit Open Loop High Torque CNC 3axis Stepper Motor SS3401AP45A
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 12 months
Model Number: SS3401AP45A
Phase: 2
Type: Hybrid
Current / Phase: DC 4.5A/Phase
Product name: nema 34 open-loop stepper motor 2.7N.m
Application: Automation
suppy power: 24-75VDC
Resistance: 0.48Ohms
Inductance: 1.7mH
Rotor Inertia: 1100g.cm2
Lead: 8
Shaft Diameter: 12.7mm
Motor length: 67.5mm
Weight: 2.0kg
Certificazione: ce, ISO, RoHS
Informazioni di base
Certificazione: ce, ISO, RoHS
Model Number: SS3401AP45A
Termini di pagamento e spedizione
Packaging Details: Exported Box+Anti-drop bubble
Descrizione di prodotto

Samsr high precision nema 34 open-loop stepper motor 2.7N.m 3axis cnc kit high torque hybrid stepper motor SS3401AP45A

Brand

Samsr

Model

SS3401AP45A

Supply voltage

24-75VDC

Motor size

86*86*67.5MM

Certification

CE, ISO, ROHS

Product Detail

Feature:

Step angle:1.8° No of phases: 2

Rated voltage: 2.16V Rated current: 4.5A

Resistance: 0.48ohm (AT 20°C) Inductance:1.7mH

Holding torque: 2.7N.m(oz.in) Dielectric strength: 500V A.C

Insulation resistance: 100 MΩ Insulation class: Class B

Temperature rise: 80K (Max) Rotor inertia: 1100g.cm

Allowable thrust load: 80N Allowable radial load:270N(on the shaft end)

Operation ambient temp:0°C~+50°C Operation ambient hum: 15%~90%

Life: 5000Hours Weight: 2.0Kg

Option-NEMA 34 Motors

Model Phase Rated voltage Rated current Resistance Holding Torque Motor length Weight Encoder Brake Single shaft Dual shaft IP grade
SS3400A40B 2 2.6V 4.0A 0.65ohm 3.0N.m 60.0mm 1.6kg No No No Yes IP40
SS3401A40A 2 1.98V 6.0A 0.33ohm 3.4N.m 67.5mm 1.88kg No No Yes No IP40
SS3402A45A 2 2.52V 4.2A 0.6ohm 3.2N.m 78.5mm 0.424kg No No Yes No IP40
SS3402A45B 2 3.9V 4.5A 1.3ohm 3.2N.m 79.5mm 2.4kg No No No Yes IP40
SS3402AP45A 2 3.6V 4.5A 0.8ohm 7.6N.m 96.5mm 3.04kg No No Yes No IP40
SS3403A60A 2 4.0V 4.0A 1.0ohm 8.0N.m 118.5mm 4.0kg No No Yes No IP40
SS3403A60D 2 3.6V 4.5A 0.8ohm 8.0N.m 152.9mm 4.0kg No Yes Yes No IP40
SS3403A60F1000 2 2.7V 6.0A 0.6ohm 8.2N.m 134.1mm 1.6kg 1000 line No Yes No IP40
SS3403A60F1000D 2 3.24V 6.0A 0.54ohm 8.2N.m 174.2mm 3.6kg 1000 line Yes No No IP40
SS3403AP40A 2 4.95V 4.5A 1.1ohm 8.9N.m 125.5mm 4.25kg No No Yes No IP40
SS3404A60F1000 2 2.7V 6.0A 0.65ohm 12N.m 172.4mm 5.0kg 1000 line No Yes No IP40
SS3404A64A 2 4.2V 6.0A 0.7ohm 10.7N.m 156mm 5.2kg No No Yes No IP40

Configuration and Option driver:MD-2778

Related:Nema 8/11/14/17/23/24/42/54

Nema 8(20mm) Nema 17(42mm) Nema 23(57mm)
