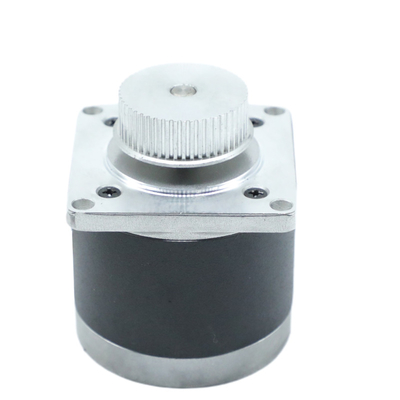

High torque output; 1.8 Degree Motor Step Hybrid High Torque Stepper Motor Precise Positioning High Output

5.0 Pieces
MOQ
High torque output; 1.8 Degree Motor Step Hybrid High Torque Stepper Motor Precise Positioning High Output
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: 57BYGN200A
Phase: 2, 2
Type: Hybrid, Hybrid
Current / Phase: 1
Product name: stepper motor
Feature: High torque output; precise positioning
Certificazione: CE ISO ROHS, ce, ISO, RoHS
Dielectric Strength: 500V AC 1minute
Max Radial load: 28N(20mm from front flange)
Shaft axial load: 10N
Application: Automatic Product
Motor length: 51mm
Informazioni di base
Certificazione: CE ISO ROHS, ce, ISO, RoHS
Model Number: 57BYGN200A
Termini di pagamento e spedizione
Packaging Details: Carton with Inner Foam Box, Pallet
Descrizione di prodotto
Product Description
Specification
Product Name
stepper motor
Lead
Wire
Voltage
Current
Resistance
Inductance
Holding
Torque
Brand
Hetai
（NO.）
（V）
（A/Phase）
（Ω/Phase）
（mH/Phase）
（g.cm）
Material
Multi-metal
4
4.2
1.0
4.2
5.5
1250
Feature
low torque output; precise positioning
Type
Hybrid
Product Application
Company Profile

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Hetai Production Process
Our advantage
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Market Range
FAQ
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136

4.Can I test sample?
Yes, samples and freight are charged.

5.Can I get Customized product?
Sure, all the products can be customized based in special request.

6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
