Casa /Prodotti/Motore a passo industriale/Wholesale high quality 1.8 degree stepper motor manufacturer cnc motor nema34 stepper motor nema34

Wholesale high quality 1.8 degree stepper motor manufacturer cnc motor nema34 stepper motor nema34

3 Pieces
MOQ
$45.00(3 - 49 Pieces) $40.00(50 - 499 Pieces) $38.00(500 - 999 Pieces) $36.50(>=1000 Pieces)
prezzo
Wholesale high quality 1.8 degree stepper motor manufacturer cnc motor nema34 stepper motor nema34
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Model Number: nema34
Phase: 2
Type: Hybrid
Current / Phase: 6A
step angel: 1.8 degree
Motor length: 115mm
Current: 6.0A
Resistance: 0.6Ω
Inductance: 6mH
Holding Torque: 8.7N.m
Detent Torque: 2.4kg.cm
Rotor Inertia: 2700g.cm2
Weight: 5.4kg
Certificazione: ce/iso/rohs
Informazioni di base
Certificazione: ce/iso/rohs
Model Number: nema34
Termini di pagamento e spedizione
Packaging Details: cartoon
Supply Ability: 10000 Piece/Pieces per Month
Descrizione di prodotto
Product Description

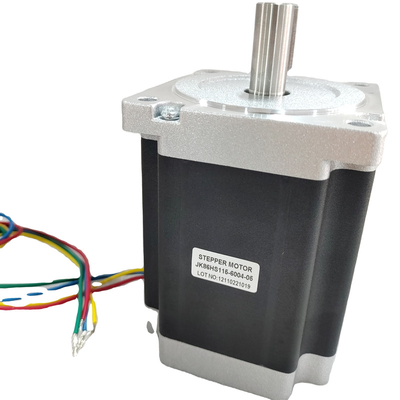

1.8° 86mm NEMA34 2 Phase hybrid stepper motor
Genaral Specification:
Item
Specifications
Step Angle
1.8°
Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100Ω Min. ,500VDC
Dielectric Strength
820VAC for 1s 3mA
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
220N(20mm from the flange)
60Max. axial force
60N
Electrical Specifications:

Model No.
Motor Length
Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque

Rotor
Inertia
Weight
(L)mm
A
Ω
mH
N.m
g.cm2
Kg
JK86HS115-6004
115
6.0
0.6
6.5
8.7
2700
3.8
JK86HS68-594
67
5.9
0.28
1.7
3.4
1000
1.7
JK86HS78-5504
78
5.5
0.46
4.0
4.6
1400
2.3
JK86HS97-4504
97
4.5
0.66
3.0
5.8
2100
3.0
JK86HS155-6004
155
6.0
0.68
9
13
4000
5.4
Company Profile
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with 8 years of professional production experience.

Q2: Do you provide OEM or ODM service?
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with
us.

Q3: What's the MOQ?
A3: 3 units.

Q4:Where is your loading port?
A5:Building A2,Hutan Industrial Zone,Wujin District, Chagnzhou,China.

Q5: Are your delivery dates on time?
A5: Yes of course.We have our own factory so can ensure timely delivery.

Q6: What about your warranty?
A6: We guarantee is 12 months, for sea order is 15 months.
