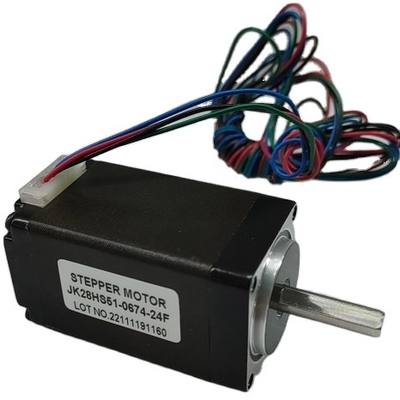

NEMA 11 17oz-in Stepper Motor 28x28x51mm 1.8deg 0.67A 1200g.cm for DIY CNC 3D Printer JK28HS51-0674-24F

10 Pieces
MOQ
$8.02(10 - 99 Pieces) $6.88(100 - 499 Pieces) $6.42(>=500 Pieces)
prezzo
NEMA 11 17oz-in Stepper Motor 28x28x51mm 1.8deg 0.67A 1200g.cm for DIY CNC 3D Printer JK28HS51-0674-24F
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Model Number: JK28HS51-0674-24F
Phase: 2
Type: Hybrid
Current / Phase: 0.67A
Product name: JK28HS51-0674-24F
Step Angle(degrees): 1.8degree
Motor length: 51mm
Current: 0.67A/ customized
Resistance: 9.2Ω
Inductance: 7.2mH
Holding torque: 1200g.cm
Number of leads: 4 or 6
Rotor inertia: 18g.cm2
Certificazione: ce/rohs
Informazioni di base
Certificazione: ce/rohs
Model Number: JK28HS51-0674-24F
Termini di pagamento e spedizione
Packaging Details: with export carton . big quantity with pallet
Supply Ability: 5000 Piece/Pieces per Week
Descrizione di prodotto
Product Description
item
value
Warranty
3months-1year
Place of Origin
China
Brand Name
jkongmotor
Model Number
JK28HS51-0674-24F
Phase
2
Type
Hybrid
Current / Phase
0.67A
Certification
ce, RoHS
Product name
JK28HS51-0674-24F
Step Angle(degrees)
1.8degree
Motor length
51mm
Current
0.67A/ customized
Resistance
9.2Ω
Inductance
7.2mH
Holding torque
1200g.cm
Number of leads
4 or 6
Rotor inertia
18g.cm2
Type
nema 11 stepper motor
Product Paramenters
Step angle:1.8°
Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:28N (20mm from flange)
Maximum axial force:10N
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Lighting, ect.

Model:JK28HS51-0674
Holding Torque:1.2kg.cm
Current / Phase:0.67A
Rated Voltage: 6.16V
Phase Resistance: 9.2Ω
Phase Inductance: 7.2mH
Shaft Diameter: 5mm
Number of leads: 4-leads
Weight: 0.2kg
Model No.
Motor length(mm)
Current(A)
Resistance(Ω)
Inductance (mH)
Holding torque (g.cm)
Rotor inertia (g.cm2)
Leads
Weight (kg)
Step Angle(°)
JK28HS32-0956
32
0.95
2.8
0.8
430
9
6
0.11
1.8
JK28HS32-0674
32
0.67
5.6
3.4
600
9
4
0.11
1.8
JK28HS45-0956
45
0.95
3.4
1.2
750
12
6
0.14
1.8
JK28HS45-0674
45
0.67
6.8
4.9
950
12
4
0.14
1.8
JK28HS51-0956
51
0.95
4.6
1.8
900
18
6
0.2
1.8
JK28HS51-0674
51
0.67
9.2
7.2
1200
18
4
0.2
1.8
Above only for representative products, products of special request can be made according to the customer request.
