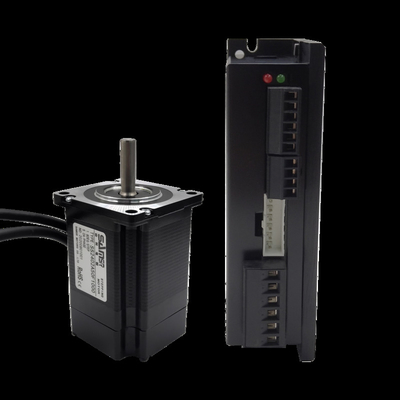

Samsr NEMA 24 2n.m Closed Loop Stepper Motor Kit NEMA 5A 24 Stepper Motor CNC Hybrid Kit SS2402A50F1000+MS-2806

1 Piece
MOQ
Samsr NEMA 24 2n.m Closed Loop Stepper Motor Kit NEMA 5A 24 Stepper Motor CNC Hybrid Kit SS2402A50F1000+MS-2806
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 12 months
Model Number: SS2402A50F1000+MS-2806
Phase: 2
Type: Hybrid
Current / Phase: DC 5.0A/Phase
Product name: Samsr integrated closed loop stepper motor
Rated current: 5.0VDC
Resistance: 0.33 Ohm
Inductance: 1.22mH
Rotor Inertia: 490g.cm2
Number of lead: 4
Motor length: 69mm
Encoder length: 21.8mm
Shaft Diameter: 8.0mm
Weight: 1.1kgs
Certificazione: ce, ISO, RoHS
Informazioni di base
Certificazione: ce, ISO, RoHS
Model Number: SS2402A50F1000+MS-2806
Termini di pagamento e spedizione
Packaging Details: Exported Box+Anti-drop bubble
Descrizione di prodotto

Samsr nema 24 2n.m closed loop stepper motor kit hybrid 5A nema 24 stepper motor kit for cnc

Brand

 Samsr

Model

SS2402A50F1000+MS-2806

Supply voltage

24-75VDC

Motor+Encoder size

60*60*90.8MM

Shaft diameter

8 mm

Shaft extension

Flat key(0.5*25mm)

Shaft length

30mm

Certification

CE, ISO, ROHS

Product Detail

Feature:

Step angle:1.8°

No of phases: 2

Rated voltage:3.2V

Rated current: 5.0A

Resistance: 0.33 ohm (AT 25°C)

Inductance:1.22 mH

Holding torque: 2.0N.m(oz.in)

Dielectric strength: 500V A.C

Insulation resistance: 100 MΩ

Insulation class: Class B

Temperature rise: 80K (Max)

Rotor inertia: 490g.cm

Allowable thrust load: 60N

Allowable radial load:200N(on the shaft end)

Operation ambient temp:0°C~+50°C

Operation ambient hum: 20%~90%

Life: 5000Hours

Weight: 1.1Kg

Option- 2 Length(90mm ,108mm)

Figure dimensions(Unit)

Knowledge for closed-loop stepper motor:

1. Encoder
A device used to translate motion into electrical signals used to provide position information; often used as a position/motion feedback device in closed loop systems
2. Encoder Marker Pulse
A once-per-revolution signal that is provided by some incremental encoders to space
3. Closed Loop
A system that uses some form of feedback device to monitor the system output; the signal from the device is used to correct any errors between actual and demanded output
4. Servo System
A feedback control system for mechanical motion in which the controlled output is position or velocity; servo systems are closed loop systems
5. Step Angle
The nominal angle through which the step motor shaft rotates between adjacent step positions
6. Resolution
The smallest positioning increment that can be achieved; frequently defined as the number of steps or feedback units required for a motor’s shaft to rotate one complete revolution
7. Holding Torque (Static Torque)
The maximum restoring torque that is developed by the energized motor when the shaft is slowly rotated by external means
Optional Drivers:Model: MS-2806/MS-2806-R
Related Products:
NEMA 17 NEMA23

Certifications

Packaging & Shipping

Company Informtion

FAQ

1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.

2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.

3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.

5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
