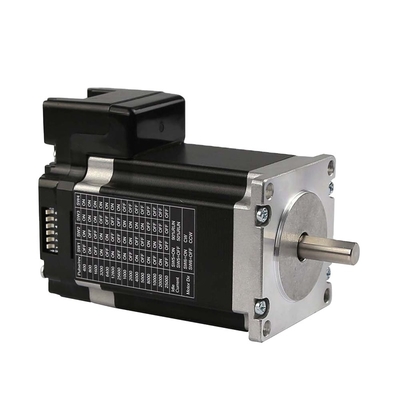

Best Price Stepper Motor Manufacturer 1.8 Degree 2 Phase NEMA 23 Driver Embedded Stepper Motor For Machine 57HS56-3004A

1 Piece
MOQ
$29.50(1 - 99 Pieces) $26.50(100 - 299 Pieces) $23.50(300 - 999 Pieces) $19.50(>=1000 Pieces)
prezzo
Best Price Stepper Motor Manufacturer 1.8 Degree 2 Phase NEMA 23 Driver Embedded Stepper Motor For Machine 57HS56-3004A
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Model Number: 57HS56-3004A
Phase: 2
Type: Hybrid
Current / Phase: 3.0A
Name: 57HS56-3004A
Motor length: 56mm
Torque: 1.0NM
Weight: 680g
Diameter: 57mm
Brand: zz-motor
warranty: one year
phase: 2
Certificazione: ce, ISO, RoHS
Informazioni di base
Certificazione: ce, ISO, RoHS
Model Number: 57HS56-3004A
Termini di pagamento e spedizione
Packaging Details: 1. Carton box with foam 2.Box can be customized as you require
Supply Ability: 200 Box/Boxes per Week
Descrizione di prodotto
Product Description
Product Name
built-in braking  stepper motor 57HS56-3004A
Material
metal
Function
machinery industry, medical instruments, laboratory equipments, home application
Package
foam and box

  • characteristic

  • 1. Bipolar constant-current chopper current control
    2. Subdivision interpolation function, smooth motor operation
    3. Flexible subdivision Settings to meet more occasions
    4. The instruction signal is compatible with 3.5-24V and no series resistance is required
    5. The stepper motor is equipped with locking device to prevent axial movement

Electric Specifications
电机型号
model
机身长
length
mm
相电流
A/phase
相电阻
Ω/phase
相电感
m H/phase
静转矩
holding
torque
N.M
转动惯量
Rotor inertia
g c㎡
引线数
lead wire
NO.
电机重量
motor weight
g

57HS41-1504A

41

1.5

1.2

2.5

0.55

150

4

470
57HS56-1504A

56

1.5

3.2

5.5

0.9

280

4

590

57HS56-3004A

56

3.0

1.1

3

1.0

280

4

680

57HS76-3004A

76

3.0

0.5

2.4

1.6

440

4

1050

57HS84-3004A

84

3.0

0.57

2.5

2.0

530

4

1130
57HS100-3004A
100
3.0
0.89
3.4
2.4
680
4
1250
57HS112-3004A
112
3.0
1.6
6.8
2.5
800
4
1400
57HS112-4204A
112
4.2
0.9
3.8
2.5
800
4
1400
Electric function diagram

minimum value
Typical values
maximum value
unit
The power supply voltage
+18
+24
+48
VDC
The output current
--
--
4.5
Amps
PUL step instruction pulse frequency
0
--
200
KHz
PUL step instruction pulse width T1
500
--
--
ns
DIR directional instruction lead time T2
50
--
--
ns
PUL step instruction response time
--
1/2 Instruction cycle
--
--
EN offline instruction response time T3
--
4
--
ms
Control signal level
+3.5
+5
+28
VDC
Overtemperature alarm threshold
--
--
+80
℃
Product Usage



  • Description of product use effect

The product mainly used in : laboratory equipments, medical instruments, advertising equipments, subway equipments, surveillance products, textile industry and other automation equipments.
Packing&Shipping
Packing
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days

Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linear motor and drivers.
The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments,subwayequipments.,surveillancproducts,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers
our products
our certification
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some more charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

Q: When will you reply after got my inquiries?
A: We will respond within 24 hours once get your inquiries.

Q: What certifications do you have?
A: We currently have CE， ISO and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.

Thanks
We are a manufacturer specialized in various motors for nearly ten years.
