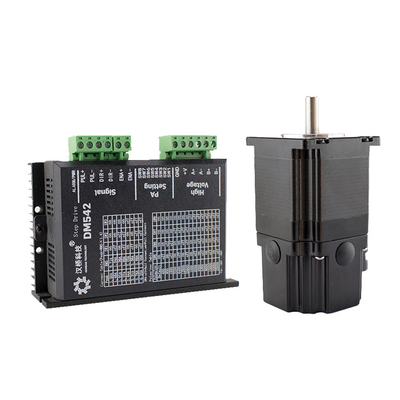

Nema23 Microstep Stepper Motor Driver 2 Phase Stepper Motor With Driver Kit Dm 542 With Brake DM542+57BYG250Ez

1.0 set
MOQ
$58.00(>=1 sets)
prezzo
Nema23 Microstep Stepper Motor Driver 2 Phase Stepper Motor With Driver Kit Dm 542 With Brake DM542+57BYG250Ez
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3 months
Model Number: DM542+57BYG250Ez
Phase: 2
Type: Hybrid
Current / Phase: 4.0A
2.5NM With brake Weight:: 1.88kg
Informazioni di base
Model Number: DM542+57BYG250Ez
Termini di pagamento e spedizione
Packaging Details: Carton packaging
Descrizione di prodotto
Product Description
Stepper drive model parameters
Model
Phase number
Input voltage
Segmentation
Current
Signal voltage
Adaptive motor
DM542-C
Two
24-48(DC)
400-25600
1.0A-4.2A
5V-24V
NEMA 17/23
DM542
Two
24-48(DC)
400-25600
1.0A-4.2A
5V-24V
NEMA 23
DM542-A
Two
24-48(DC)
400-51200
1.0A-4.2A
5V-24V
NEMA 23
DM856
Two
24-80(DC)
400-51200
1.5A-5.6A
    5V
NEMA 23
Stepper motor model parameters
Model
Step angle (°)
Holding torque（N.m）
Phase current（A）
Phase inductance（mH）
Phase resistance（Ω）
Rotor inertia（g.㎡）
Weight（Kg）
Motor length（mm）
Shaft diameter（mm）
57BYG250
1.8
0.7
1.0
5.4
5.7
120
0.47
41
8
57BYG250A
1.8
1.0
1.5
12.0
3.5
300
0.63
51
8
57BYG250B
1.8
1.2
2.0
2.5
0.9
350
0.7
56
8
57BYG250C
1.8
1.8
2.8
3.6
1.13
480
1.1
78
8
57BYG250D
1.8
2.2
3.0
5.4
1.4
550
1.3
82
8
57BYG250E
1.8
2.5
3.0
3.6
1.4
700
1.5
93
8
57BYG250H
1.8
3.0
4.0
3.5
1.0
820
2.0
112
8

Heat dissipation
technology of shovel teeth

The drive base adopts mature shovel tooth
(aluminum extrusion) heat dissipation technology
Even in a narrow installation space, it can maintain good
heat dissipation performanceIt is beneficial to prolong
the service life of main board electronic components.
.

Advanced processing
Technology

The whole body is made of high-strength metal,
which is strong and durable.
The side wall has a frosted metal texture,
which increases the friction and comprehensively improves
the rigidity of the motor, and is not easy to deform.

One body
Three-proof design

Unique high-density three-proof design
which greatly enhances the motor's waterproof
dustproof and anti-aging performance.
