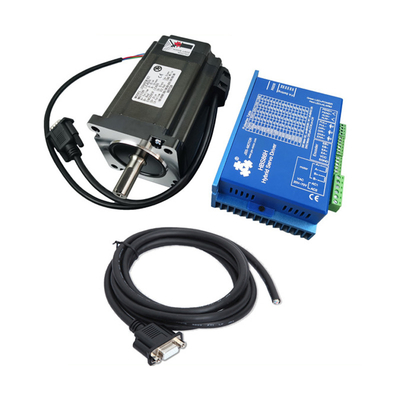

Nema34 Closed Loop Stepper Motor Kit High Precision Single Servo Motor 8N Torque 86mm Stepper Motor

1.0 piece
MOQ
Nema34 Closed Loop Stepper Motor Kit High Precision Single Servo Motor 8N Torque 86mm Stepper Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3years
Model Number: 86HS-CL
Phase: 2
Type: Hybrid
Current / Phase: 6A
Product name: 86HS Closed-loop Stepper Motor
Step Angle: 1.8°
Holding Torque: 4.5/6/8/12N.M
Key words: Nema34 Stepper Motor
Resistance: 0.45
Frame Size: 86mm
Motor length: 82/100/118/156mm
Inductance: 3.7/3.7/3.7/5.2
Shaft: Customized
Encoder cable: 2/3/5/8/10/12m
Informazioni di base
Model Number: 86HS-CL
Termini di pagamento e spedizione
Packaging Details: Internal foam reinforcement External high hardness carton
Supply Ability: 10000 Piece/Pieces per Month
Descrizione di prodotto
Product Overview
Nema34 Closed Loop Stepper Motor Kit High Precision Simple Servo Motor 8N Torque Stepper Motor
Products Description
 Model
Step Angle
Current （A）
Holding Torque（N.M）
Motor Length（mm）
Encoder  Resolution（PPR）
Weight （KG）
86HSE4N
1.8°
6A
4.5N.M
82
1000
2.6
86HSE8N
1.8°
6A
8N.M
118
1000
4
86HSE12N
1.8°
6A
12N.M
156
1000
5.6
1. The pure metal body is integrally formed, which can effectively reduce the temperature rise during operation 2. High precision requirements and exquisite workmanship to ensure motor quality and service life 3. A variety of high-quality accessories are used, which are durable and corrosion resistant, ensuring accurate mechanical operation
Product Advantage


Low temperature rise
Large moment

high-precision
high velocity
Low noise

Details Images
Nema 34 closed-loop stepping motor equipped with high-quality bearings, can maintain stability when running at high speed
Aluminum alloy motor rear cover, equipped with waterproof and dust-proof grooves
Encoder adopts imported brand reader, AB dual channel, 1000 lines
Successful Project
Stepper motor is indispensable part of industrial machines. We are committed to solving problems for you with the original intention of serving customers!
Product packaging
1. Customized foam is used internally to protect our stepper motor 2. We use high-strength cartons/wooden boxes outside
